Additional information
material | Borofloat®33 |
---|---|
dimension | 115 x 60 x 6 ± 0.5 mm |
inlets | 2 |
volume | 0.27 ml |
mixer type | S |
permitted particle size | 50 µm |
flow rate water @ 3 bar | 155 ml/min |
pressure resistance mixer | 15 bar |

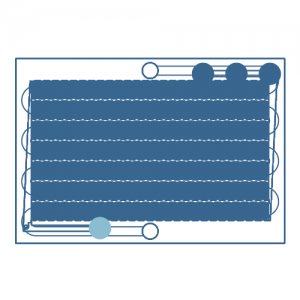

LTF’s MR-LAB-Kat is a modified MR-LAB-MS micromixer with an integrated catalyst. At MR-LAB-KAT-R the flow goes along an inserted catalyst rod (inside in the catalyst channel), where the flow is then 100 mm in contact with the catalyst rod.
Main properties:
material | Borofloat®33 |
---|---|
dimension | 115 x 60 x 6 ± 0.5 mm |
inlets | 2 |
volume | 0.27 ml |
mixer type | S |
permitted particle size | 50 µm |
flow rate water @ 3 bar | 155 ml/min |
pressure resistance mixer | 15 bar |
